Class
Heavy-duty-forklift
Engine
VOLVO TAD881VE
Rated power
185 kW / 2 200 rpm
Lifting capacity
25 000 kg
Operating mass
33 900 kg
TOP HIGHLIGHTS
+ High lifting speed for fast work
+ Powerful acceleration due to four-speed
+ powershift gear box with torque converter
+ and automatic gear shift
+ Optimal weight distribution and
+ reduction of the front axle load
+ for reduced wear on the tyres
TOP FEATURES

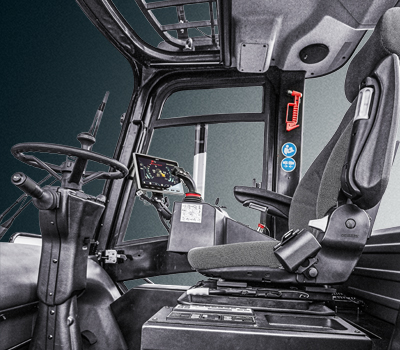

Taking the weight off of heavy loads – The newly designed cab, which is now 40 mm wider, has a robust frame and offers an even safer and more comfortable workplace than the previous cab. For example, the operator will find powerful air conditioning with its own display for all AC settings in the cab as standard. The ergonomic joystick makes the fork functions particularly easy to use. The electric accelerator pedal and the combined braking/coupling pedal is responsible for quick, safe travel. The easy-to-tilt steering column makes getting in and out of the cab comfortable and underpins the optimised, ergonomic overall package.
Maintenance made easy – For easy access to the gear box, the driver’s cab can be tilted to the right hydraulically. Routine maintenance tasks can also be completed quickly thanks to the easily accessible lubrication points and a lubrication bench for hidden bearing points.
A complete overview – The large 10-inch display, which is easy to reach on the right-hand armrest console, is intuitive to use as a touch screen and includes a number of features, such as windscreen wipers, lights or on-board diagnostics. The forklift, mast tilt, fork spacing, fork side shift and individual fork spacing are controlled via the joystick – and that includes multiple operations at once.
Best outlook for safe working – The large opening in the middle of the mast offers a clear view of the fork and load at the front. The hydraulic lines arrangement on the mast is angled to minimise obstruction to the operator’s view left and right of the mast. The rear window with its curved corners provides an unrestricted field of vision when reversing and manoeuvring. What is more, the large roof glazing offers a clear view of high masts – it is rare to see such an all-round view.
DEALER LOCATOR
With our European SANY Dealers, you will always find a location next to you.
DOWNLOAD
TECHNICAL SPECIFICATIONS
MOVING HEAVY LOADS SAFELY WITH PRECISION
When it comes to lifting heavy cargo, SANY’s heavy-duty forklift is in its element. At the port, sawmill or steel manufacture, loading precast concrete components or wind energy components – it will do a stellar job wherever loads need to be moved and positioned with precision. The box frame, which is manufactured in-house, makes it particularly robust, and, thanks to its tried-and-tested components, it is right at home in continuous use under the toughest of operating conditions. Its optimal weight distribution makes it highly stable. For agile manoeuvring, the double-action steering cylinder and the steering angle make for tight turns. The solid heavy-duty forklift combines precise, safe lifting, moving and positioning of cargo with low operating costs.
| ENGINE | ||
| Rated power | 185 / 2 200 | kW / rpm |
| DRIVING AND LIFTING PERFORMANCE | ||
| Lifting capacity | 25 000 | kg |
| Lifting speed without/with load | 350 / 320 | mm/s |
| Lowering speed without/with load | 500 / 500 | mm/s |
| Lifting height, standard | 4 000 | mm |
| Lifting height, optional | 6 000 | mm |
| DIMENSIONS | ||
| Total length | 8 791 | mm |
| Transport width | 3 100 | mm |
| Transport height | 4 300 | mm |
| Outer turning radius | 6 000 | mm |
EQUIPMENT
MORE OPTIONS FOR THOSE WITH MORE IN MIND
SANY heavy-duty forklifts already come with a number of equipment features ex works. They can also be adapted to individual needs for a wide range of requirements and areas of application:
Standard equipment
› Air conditioning*
› 10″ colour touch screen
› Glass roof with sun-cover and protective grille
› Comfortable driver’s seat with high backrest
Option
› Air suspension, electrically adjustable lumbar supports and heated seats
› Stationary, diesel-powered cabin heater
› Winter package for electric pre-heating of the cabin, engine, diesel and hydraulic oil
› Radio
› Document holder, holder for tablet computer
* The air-conditioning system contains fluorinated greenhouse gases: Refrigerant type: R134a, global warming potential: 1 300, quantity: 1.6 kg, CO2e: 2.08 tonnes
Standard equipment
› 2 l fire extinguisher
Option
› Automatic reversing camera
› Distance sensors at the rear
› Tyre pressure monitoring
› 360° all-round camera system
› Automatic fire extinguishing system in the engine compartment
› Emergency stop switch on both sides of the machine
› Adjustable speed limiter
› Load-sensing hydraulic system
› Automatic engine speed increase
Standard equipment
› Duplex mast for lifting height of 4 000 mm
› Fork carrier with suspended fork arms, 2 400 mm fork length
› Side shift and distance adjustment of the forks
› Individual arm adjustment
Option
› Selection of duplex masts from 3 500 to 6 000 mm lifting height
› Duplex mast for 4 000 mm lifting height with free lift
Standard equipment
› LED lighting system with 12 worklights
› Rotating beacon
Option
› More work spotlights
Standard equipment
› Electric parking brake
Option
› Automatic engine stop when idling
Standard equipment
› Electro-hydraulically tiltable cab
Option
› External monitor for daily maintenance control
› Automatic central lubrication system
› Custom paint
