SY135C
CHAMPION
IN ITS
CLASS
RELIABLE. COST-EFFECTIVE. PRODUCTIVE.

Class
Compact excavators

Engine
ISUZU 4JJ1X

Rated power
78.5 kW / 2 000 rpm

Bucket capacity
0.6 m3

Operating mass
15100 kg

TOP HIGHLIGHTS

+ Automatic climate control

+ Large display

+ LED work lighting

+ Reinforced chassis

TOP PROPERTIES

QUALITY



Quality is worth it
High-quality components improve the machine‘s durability, while additionally increasing the intervals between each maintenance and service.

With the benefit of robustness
Durability and robustness are standard features on all SANY excavators. The reinforced structure of the SY135C lends the chassis exemplary stability, thereby prolonging the machine‘s service life. What‘s more, all of the panels are made solely of metal, which makes them particularly resilient.



DIMENSIONS


Compact power

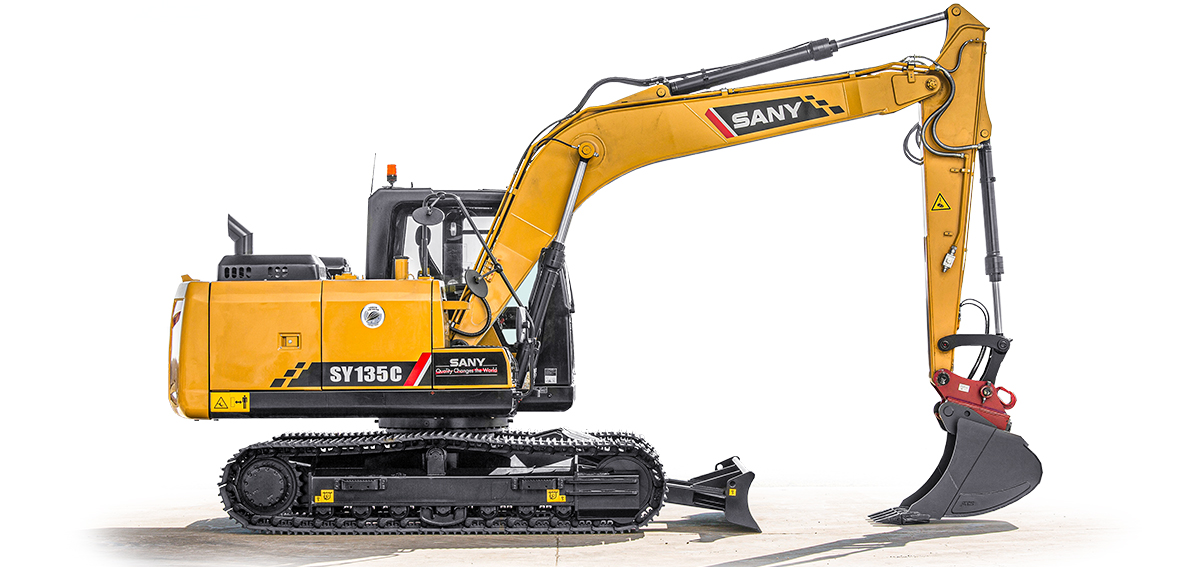

The SANY SY135C tackles work extremely efficiently as a compact excavator. High performance and impressive stability – the perfect combination to complete all tasks quickly and reliably on the construction site.

everything within reach
The SY135C impresses on-site thanks to its stability and stableness, meaning it brings its power quickly and safety to where it is needed. Its large working radius is also a plus point, with a maximum horizontal reach of 8290 mm and maximum excavation depth of 5500 mm. The heavy dozer blade ensures additional stability.

USER EXPERIENCE



Easy to maintain
The engine bonnet that can be fully opened and the clear arrangement of the key components in the centre make maintenance and service quick and easy.

Control with feeling
The joystick control enables all functions of the excavator to be operated intuitively. The hydraulics valve control responds to commands immediately. Together with the automatic speed setting, this enables work to be carried out precisely and safely with higher efficiency and lower fuel consumption for the same operation. Not forgetting the large multifunctional monitor, which is easy to read and navigate, and displays all important information.

The premium class of driver comfort
A key feature of the SY135C is comprehensive comfort for its drivers. Excellent insulation round the cab provides reliable protection from noise and vibrations, as well as from high and low temperatures. The air-suspension driver’s seat, provided as standard, offers the best possible comfort and protection from fatigue with its high seat backrest and various adjustment options. Plenty of space and room for movement, a radio and a 12 V jack, adjustable ventilation, heating and an automatic climate control system, a huge amount of stowage space, various options for storage and much more complete the comfort package.

SAFETY


Comprehensive protection
The hydraulic cylinders are optimally protected against damage thanks to their careful arrangement and stable protective plates.

Minimising risks
Ergonomic handrails enable safe access to the maintenance platform. Large mirrors facilitate safe movement during operation, while the integrated safety valves keeps the boom and arm in position, even in the worst-case scenario.

COMPONENTS



Reliable drive
The tried-and-tested ISUZU-4JJ1X engine guarantees reliable performance in the long term, even in harsh working conditions.

Flexibility as standard

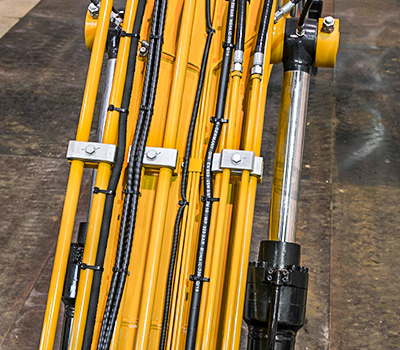

The full hydraulic arrangement of the quick-change system guarantees that functions are perfectly integrated into the control menu, facilitating quick and safe attachment replacement. A further benefit is time and cost savings compared with regular retrofitting.

ECONOMY



Efficiency and power
The smart control system adapts the pump capacity to the available engine power for greater costeffectiveness and reduced fuel consumption.

Strong performance with low fuel consumption
More work with less fuel – the SY135C‘s sophisticated engine and hydraulic concept makes this a reality. The hugely powerful diesel engine, equipped with common rail technology and AdBlue emission control, puts on a strong show with its maximum torque of 375 Nm and 1 800 rpm. A choice of various operating modes and automatic speed reduction optimise fuel consumption in a tangible way. This is where power meets efficiency. The total savings thanks to improved fuel efficiency result in significant economic benefits.

TECHNICAL SPECIFICATIONS

PERFORMANCE YOU CAN RELY ON

The SY135C resoundingly proves that the performance of a compact excavator is not necessarily determined by bulky size. Weighing a total of almost 15 tonnes, it offers the optimum ratio of power to manoeuvrability. In addition, the robust, wide heavy-duty undercarriage and the robust dozer blade provide a high level of stability. This allows it to optimally apply its power – for a comprehensive range of applications anywhere where larger machines have to fit.

DIMENSIONS
Operating mass15100(with brade)kg
Standard bucket capacity0.6
Transport length7700mm
Transport width2590mm
Height over cabin/ROPS2820mm
ENGINE
Rated power78.5kW2000rpm
WORKING AREA
Max. digging depth5500mm
Max. digging reach8290mm
Min. swing radius2500mm
Bucket digging force ISO103kN
Arm digging force ISO67kN
HYDRAULIC SYSTEM
Max. oilflow2x110l/min

STANDARD EQUIPMENT

THE SY135C – OUTSTANDINGLY WELL-EQUIPPED AS STANDARD

Already fitted ex-works with an excellent range of equipment. The SANY SY135C is superbly equipped as standard with optional additional equipment to broaden its scope of possible applications.

Airsuspension seat
Heated seat
Heater
Automatic air conditioning C/H
Radio and speaker
Armrests (adjustable)
12v outlets
Wiper
Sprayer f. wiper
Sky light openable
Integrated cooling box
AUX 1 on Joystick
AUX 2 on Joystick
Removable front-window
Rubberfloor

Battery master switch
Warning beacon
Lockable hoods
Handrails
Lockable fuel cap

Boom and arm load holding valves with overload indicator
Double acting circuit for hydraulic quick coupler with piping
Breaker&Shear line proportional on Joystick with piping
Rotation line proportional on Joystick with piping
Flow adjustment for attachments
Dozer blade

› Lights – front (LED)
› Lights – boom (LED)
› Lights – platform (LED)

Steel tracks
› Holes/loops for fixing

Auto idle
Diesel filter
Airfilter

Swing brake
2 speed travel
Hydr. Pre-pressure operating joysticks
Piping for additional hydraulic function AUX 1
Piping for additional hydraulic function AUX 2
Mainfilter
