VOLVO EU STAGE V
265 kW / 2 100 rpm
Load capacities at row 1/2/3
45 / 31 / 15 t
6 000 mm
+ Compact and high-performance
+ Large, comfortable driver‘s cab
+ Robust and extremely durable
+ thanks to solid steel construction
+ Extensive safety equipment
The SANY extra-tonne – a little more is always welcome when it comes to lifting capacity. That is why SANY gives the option of adding an other tonne to the lifting capacity for the 2nd and 3rd rows with the movable counterweight.
The time-saver machine – exactly the right performance at the container terminal. Convincing with its sheer power when stacking heavy container in the first and second rows, with agility and fast manoeuvring, even in tight aisles, and with fast cycle times thanks to high-performance hydraulics and precise joystick control. Support is provided by automatic systems for locking the twist locks and telescopically extending the spreader, and a fully automatic powershift transmission with torque converter.
Maximum operating times, minimum downtimes – SANY reach stackers prove their reliability in tough practical operations worldwide. Within 10 years of operation, they reach more than 50,000 working hours, clocking up an excellent total operating time. Downtimes for maintenance, service or repairs are extremely low compared to the useful machine hours.
Powerful – the powerful and economical 11-l engine and the efficient 5-speed gearbox allow the most powerful and efficient engine rpms to be used frequently while travelling. Increased speed of the hydraulic pump at reduced engine speed also reduced fuel consumption.
Economy in every direction – the powerful Volvo-Penta engine (EU Stage V) provides ample torque from its 11 litres of displacement. The maximum engine output is available at just 1,400 to 2,100 rpm. This allows the engine to work powerfully yet economically at mid-range speeds. The Volvo engine harmonises perfectly with the fully automatic TE-30 5-speed powershift transmission, guaranteeing not only gentle pulling away and quick acceleration, but also fuel-efficient operation without loss of performance. In other words, the speed remains in the medium range even when changing gear – the engine can work largely at fuel-efficient speeds. Moreover, the torque converter guarantees gentle pulling away, manoeuvring and gear changes. The engine speed is automatically raised and lowered for hydraulic operation. And the radiators are distributed to several positions in the vehicle to ensure good cooling performance with low power being demanded by the fans and low noise emissions.
Long-term investment – good stability in the steel construction and in the spreader give SANY reach stackers their extraordinary robustness. High-quality transmission and hydraulic components from leading manufacturers (Volvo, Dana, Kessler, Parker), quality electronics from IFM and a premium joystick ensure that SANY reach stackers continue to perform over a long time.
Inner and outer values – all structural components, for example the complete steel construction, the chassis and the boom, are from our own production and are subject to strict quality control. All components in the drive train, hydraulics and electronics are sourced from prominent European brand-name manufacturers. That gives the user the certainty that he can rely on maximum quality down to the finest detail. Plus, design modifications are possible in-house at any time.
Comfort leads to efficiency – the largest cab in its class gives the driver not only sufficient space, but also a wide range of comfort functions. The pleasant environment and the ergonomically arranged control elements allow concentrated, productive work over a long period.
Complete comfort, complete control – the power of the SANY reach stackers is also plain to see behind the steering wheel: The largest cab in its class provides a lot of comfort. This includes air conditioning as standard and a driver‘s seat with comfortable neck support, high backrest and armrests. A Grammer premium seat with seat heating, electrical adjustment and lumbar support is also optionally available, as is a co-driver‘s seat. The noise insulation in the cab exceeds the requirements of the strictest industrial standards, making the working environment even more comfortable and preventing the early onset of driver fatigue. The entire machine control is located on the control console on the right-hand armrest and the steering wheel column, putting everything within easy reach. The high-precision Elobau multifunction joystick makes exact, efficient work possible in all situations. For example, it allows several hydraulic commands at the same time, and supports precise control for fast cycle times. The cab itself can be moved electro-hydraulically to put the driver in a position where his view of the working area is unobstructed at all times.
So much is certain – the excellent stability is essential for working quickly and safely. The design is particularly robust and torsion-
resistant, providing for the necessary stability with or without a load and intelligent weight distribution. Moreover, the driver can rely on numerous safety systems, including an extensive range of sensors, when the cab is moved to the front-most position.
Safe. Safer. SANY. – joystick control for the boom and the spreader is implemented with two independent CAN buses. Safety also when it comes to stability: Intelligent weight distribution and the robust chassis provide for the best stability in its class. Optional tyre pressure monitoring guarantees that nothing is overlooked when it comes to stability. The driver receives information from the main display and from the head-up display about how much load capacity has been utilised, another factor for safe and fast working. He can thus quickly move the spreader with a container within the safe load range. What‘s more, to protect the driver, the rotation of the spreader is limited to 30° as soon as the cab is moved out of the safe rear position.

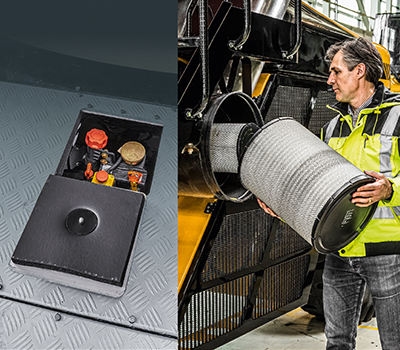

The easy way – the dipsticks for the engine and gear oil are easily accessible in front of the driver‘s cab. The air filter is just as easy to service and exchange. Practical: The large service hatches on the side of the machine for uncomplicated service control.
Compactness as a concept – compact dimensions, uncompromising performance – the properties of the SANY reach stackers cannot be described more accurately than that. With a wheel base of 6,000 mm, it offers a perfect combination of agility and safety. Manageable dimensions for fast manoeuvring in tight spaces on the one hand; ideal weight distribution for the optimum stability and weight saving on the other. SANY thus raises the benchmark for efficency in container handing by another notch.
AGILE POWER UNITS
SANY reach stackers package together with the complete know-how and experience of the world’s largest producer of reach stackers. The new models redefine standards, not only when it comes to load capacity and manoeuvrability. They are also unrivalled in terms of driver comfort and work safety.
|Rated Power||265 / 2100||kw / rpm|
|Max. lift height (ELME spreader 857)||14 910||mm|
|Load capacity 1./2./3. row||45/27/11||t|
|Total length||11 290||mm|
|Wheel base||6 000||mm|
|Max. height, including rotating beacon light||4 850||mm|
|Turning radius||8 100||mm|
COMPLETE PACKAGE WITH MANY OPTIONS
SANY reach stackers are excellently equipped from the factory when it comes to driver comfort, safety and performance. A series of optional equipment features are available for maximum flexibility and optimal adaptation for the task at hand – from a movable counterweight for additional lifting capacity to the winter package for cold climatic regions.
› Optimum vision thanks to narrow cab pillars
› Grammer Actimo XL driver’s seat, air sprung
› Convenient entry/exit thanks to pivoting steering column
› 7-inch colour display with high resolution
› 3.5-inch colour display
› Rear-view camera with separate display
› Rear distance sensors, visual and acoustic output
› Safety package in spreader
› Joystick with CAN safety for fail-safe control of boom and spreader movements
› Automatic parking brake
› Automatically activated speed limitation
› Choice of various spreaders: ELME 817 Innovation and SANY SDJ450H9, Top-Lift for 20 and 40-foot ISO containers, with twist-lock display
› Automatic telescope mechanism
› Pendulum damping cylinder
› +/-2° mechanical slope compensation
› -195°/+105° angle of rotation, +/-30° limit of rotation with the cab in the front-most position
› 8 LED front headlights: low beam, high beam, cornering lights
› 4 LED headlights on boom
› 2 LED headlights on spreader
› 4 LED headlights for ambient lighting to the sides and rear
› LED rotating beacon, limiting lights, brake light, turn signals
› Fully automatic powershift transmission with torque converter
› Stop automatic at idle, automatic engine speed adjustment
› Several CAN bus systems, on-board diagnosis
› Battery master switch, protection systems for correct machine operation, seat contact switch, filter blockage indicator
