STR30-10
STRONG IN COMPACTION
AGILE. KOMPACT. ROBUST.

Class
Tandem Rollers

Engine
Kubota D1803 Stage V

Rated power
37 kN / 2 400 U/min

Working width
1 200 mm

Operating mass
3 120 kg

TOP HIGHLIGHTS

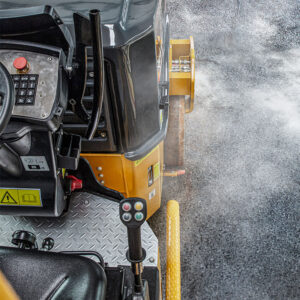

+ Precise operation thanks
+ to the multifunction control lever

+ Seat together with second control
+ lever can be moved sideways

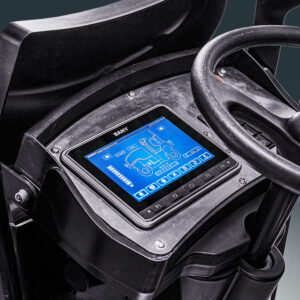

+ User-friendly touch display

TOP FEATURES

Robust and durable – All essential protective elements, reinforcements, steps and tanks are made of high-quality metal. So quality becomes the best protection for your investment. Ideal for demanding applications on construction sites.

Uncomplicated maintenance is key – Regular inspection and maintenance work ensures a good performance and service life of the machine. We therefore make these tasks as easy as possible for the operator. The robust articulated joint is completely maintenance-free, and all maintenance-relevant components are easily accessible thanks to the high opening angle of the engine bonnet.

High compaction efficiency – The STR30C-10 impress with the linear load and amplitude. Adjustable frequencies enable optimum compaction results to be achieved with every task.

Effective compaction –The SANY tandem rollers are packed with power. The Kubota diesel engines provide sufficient power to perform even extensive projects cost-effectively. The high linear load and large amplitude ensure fast and even compaction – and therefore efficient processing of larger areas.

Extremely comfortable – From easy access to the laterally adjustable comfortable seat and the ergonomically designed controls, drivers can look forward to maximum driving comfort.

Uncomplicated is the key – The driving platform is designed for comfortable and safe operation. All important information and functions can be called up intuitively via the touch-screen display. The multifunction control levers respond directly to the operator‘s commands, allowing relaxed and safe working. The decoupling of the frame from the machine ensures fatigue-free, focused work and the eco-stop function automatically switches off the machine when not in use. As operator comfort is synonymous with productivity, the SANY tandem rollers lead the way here, too: the seat and armrest are individually adjustable, and the driver‘s seat, including the second control lever, can be moved sideways.

Good as standard – SANY tandem rollers rely on proven quality. That includes high-quality core components from renowned brand manufacturers, such as drive pumps by Danfoss together with Kubota diesel engines. They guarantee high performance, even when working on inclines.

Convincing performance – Powerful compaction technology meets reliable quality. The tandem rollers from SANY ensure both of these things thanks to high-quality components from brand manufacturers. This includes reliable hydraulic pumps from Danfoss and Poclain hydraulic motors for good traction and reliability.

Economically convincing – When it comes to costs, SANY tandem rollers are the first choice: favourable purchase price, long maintenance intervals and economical consumption in compliance with stage V emissions standards.

Combining performance and efficiencyIt‘s not only users on construction sites who love the STR30C-10 from SANY. The accounts department are also happy, as the tandem rollers of the sub-5-tonne series keep costs down. Low purchase costs, low maintenance requirements and reduced expenses for ongoing operation guarantee maximum operating time at low overall costs.

No ifs and buts – Enables safe and precise work even in cramped spaces. The STR30C-10 is equipped with a folding ROPS, rotating beacon and road lighting.

Protection down to the tiniest detail –If the worst comes to the worst, the ROPS protects the driver – but the rollover protection can be folded down quickly and easily for transport or when working in confined spaces. The seat contact switch reliably recognises whether the operator is sitting in the seat. This protects against unintentional movements of the machine. The articulated joint lock for loading, unloading and transport, sturdy galvanised lashing eyes, emergency stop switch, battery master switch, reversing alarm and rotating warning light complete the safety equipment.

DEALER LOCATOR

With our European SANY Dealers, you will always find a location next to you.

DOWNLOAD

Brochure STR30C-10
Download [PDF 5.5 MB]
Brochure (Italiano) STR30C-10
Download [PDF 5.5 MB]

TECHNICAL SPECIFICATIONS

MANY EXTRAS ALREADY INCLUDED EX WORKS

The SANY tandem roller STR30C-10 is already equipped with many extras as standard. Vandalism protection, 12 V socket and USB charging socket are already on board ex works.

WEIGHTS
Operating mass3 120kg
Front axle load1 500kg
Rear axle load1 620kg
ENGINE
Rated power37kW2 400rpm
DIMENSIONS
Transport length2 544mm
Transport width1 312mm
Transport height2 585mm
DRIVING CHARACTERISTICS
Speed10km/h
Max. gradeability without vibration40%
Max. gradeability with vibration30%

STANDARD EQUIPMENT

TANDEM ROLLERS THAT MAKE THE RIGHT IMPRESSION

The lightweight SANY tandem rollers impress with their versatility and cost efficiency. They demonstrate their strengths in gardening and landscaping, asphalt construction, repair work and follow-up work. Articulated steering offers excellent manoeuvrability for precise work, especially where space is tight and maximum precision is required. This makes compaction work even more economical and productive. The robust workmanship and uncomplicated operation make them ideal for use in tough everyday construction site conditions.

Multifunction control lever
Multifunction display
Seat with adjustable armrest
Driver’s seat can be moved with both control levers
Vandalism protection
12V socket
USB charging socket

Direction indicator and hazard warning lights
Battery disconnection switch
Seat contact switch
ROPS including seat-belt
Reversing alarm
Beacon lamp
Emergency stop switch
Lockable hood
Articulated joint lock
Lockable fuel tank cover
Operating instructions in local language

Scraper
Galvanised lashing eyes

Lights for road travel
